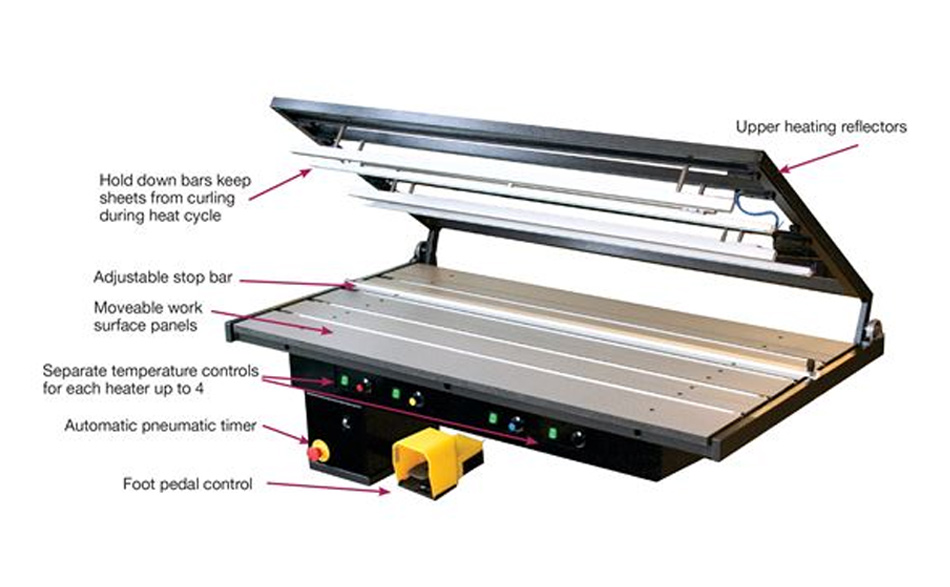

Pneumatic Plastic Bending Table (110V or 220V specify when ordering).
For: PP displays • Signs • Literature racks, etc. (Line Bending).

Please contact us for shipping costs. Due to the Covid-19 virus, costs and leads times are affected.

• Double-sided heating. Heating time for 1/8" acrylic is about 25 seconds
• Makes multiple bends in PP, PE, PS, PC, PVC, and PMMA
• Bends sheets up to 5/8” thick (over 1/4” takes additional time and may require routing)
• Adjustable heating filaments with heat reflectors with controls
• The height of the filaments in the reflectors can be adjusted to work with different thicknesses and radii. The lower heating reflectors and parallel stop are easily set using the inch/millimeter scale
• The lower work surface has adjustable sliding panels
• Pneumatic Pressure bars hold the material in place during the heating process
• Uses compressed air to semi-automatically operate the top frame along with foot switch and timer
• Opens when heating is complete
• Made of Durable, Scratch Resistant Trespa panels, steel frame

Read our Brochure for more information on this product, please Click Here.
FOB CA

Features

Technical Data

Additional Equipment

• Click on our Technical Data and Additional Equipment Tabs above for more information.

• 	ARK125	ARK65
  Working Length	4 ft (125cm)	2 ft (65cm)
  Standard Sheet Thickness	1/32" - 5/16" (0.4-8mm)	1/32" - 5/16" (0.4-8mm)
  Maximum Sheet Thickness	5/8" (15mm) with routing and extra time	5/8" (15mm) with routing and extra time
  Maximum regulating units	4	2
  Adjustment on Reflectors/ filaments	7/8" to 24"	7/8" to 20"
  Outside Dimensions	58"W x 27"D x 11"H (on bottom deck).	34"W x 25"D x 11"H
  Work surface dimensions	49"W x 26"D	25"W x 24"D
  Height open	29"	29"
  Power Consumption	500 Watts	500 Watts
  Power Supply	110V or 220-230V	110V or 220-230V
  Air Requirement	90psi	90psi
  CE certified	yes	yes
  Lead time	2-6 wks	2-6 wks
  Weight	275lbs.	220lbs

• Some additional items include:

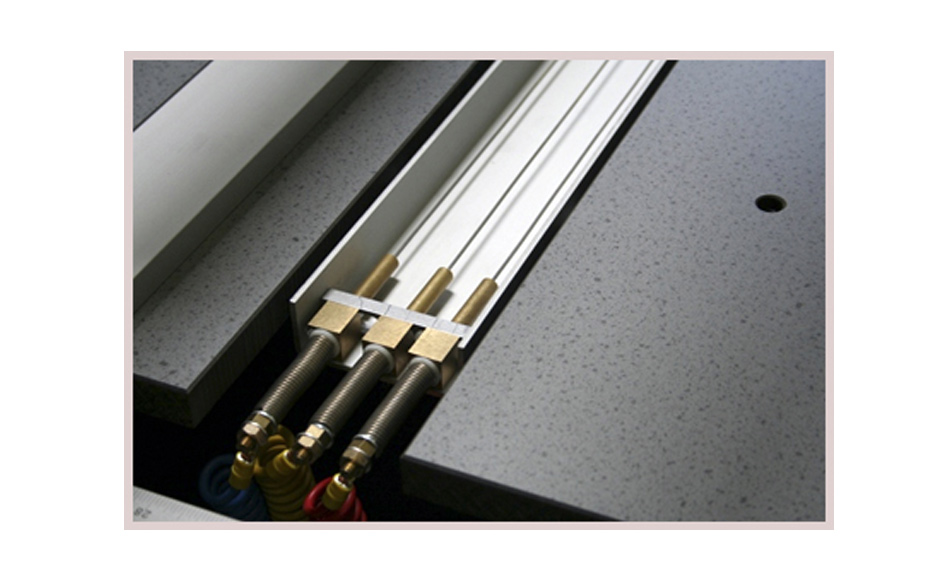

  A range of reflectors are available with a variety in length, width and multiple heating-wires. Reflectors top and bottom up to 250 mm. in width and with 12 wires each have been made. Our standard multiple wire reflectors with 2 to 4 wires and 30 to 120 mm. in width are capable of bending plastic sheets up to 25 mm. thickness and ideal for bending a big radius.

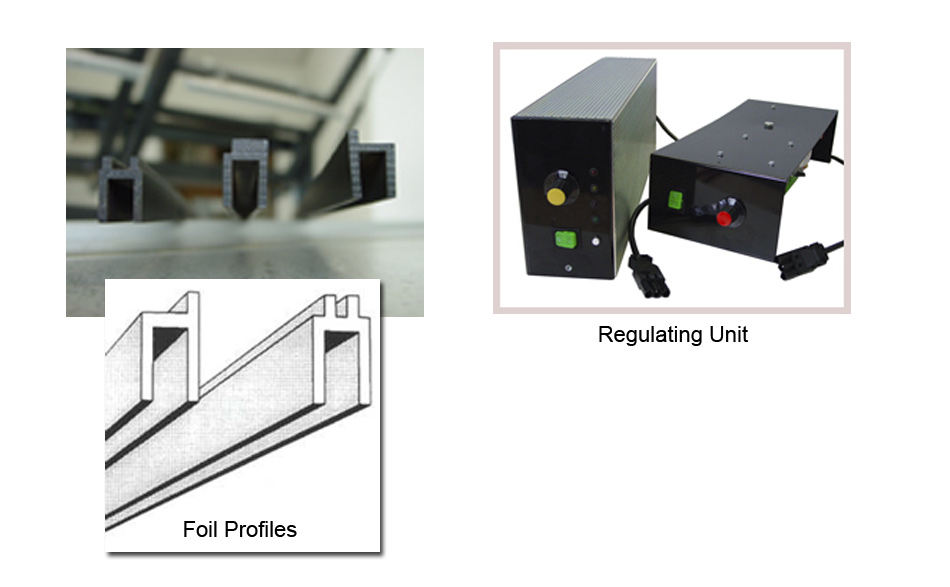

  Foil Profiles: Thin sheets (0,3 to 1,5 mm.) can be bent straight with no distortion with our teflon coated foil bending profiles. These profiles are also perfect for bending Forex or foamed PVC to prevent ‘ears’ on the sides of the bends so cutting of these deformed sides after bending is not needed. The foil bending profiles are also available with a double contact-back to make 2 very close bends possible. A range of back-sizes are available (from 2 to 10 mm. width). Our standard lengths: 50, 65.

  Regulating Unit: Our plastic bending machines are standard constructed to be easily extended with extra regulating units at any time. Double regulating units are also available for continuously variable adjusting the temperature of 2 heating wires.
