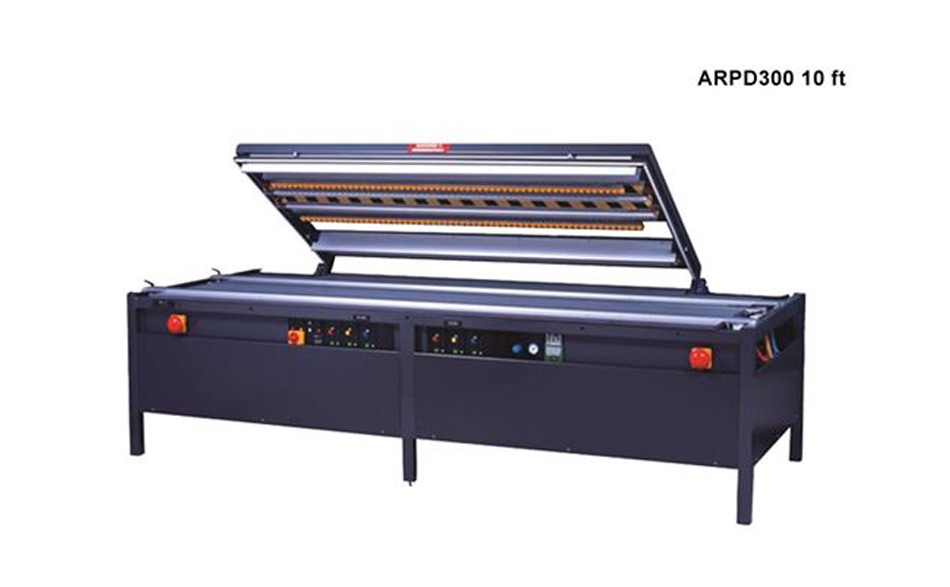

The machine is constructed like an ARP300 with a 200 cm. top frame and extra automatic feed-and transport system. Very suitable for manufacturing large series of displays! Up to 2000 pieces per hour! Bending 0.3 - 1 mm. or up to 20 mm. sheets is possible with easy to add foil bending profiles or 2 or 3-wire reflectors (see accessories).

Contact us for delivery charges.

• Standard construction: 2 under and 2 upper reflectors with 4 regulating units
• Working length: 300 cm. under and 200 cm. upper.
• Heating Under and Upper Standard sheet thickness: 1 - 12 mm.
• Maximum sheet thickness: 25mm
• Either 1, 2 or 3 belts (Auto feed and transport system)
• Distance between reflectors (center to center): 20 - 1,000 mm.
• Adjustable clamping bars
• Standard equipped with 2 pieces
• Weight: 650 / 750 kg (1000 to 1600 lbs).
• Connection voltage: 110, 220 - 230 (Specify voltage when ordering)

Read our Brochure for more information on this product, please Click Here.
FOB CA

Features

Additional Equipment

• More information on this machine is shown at this link.
