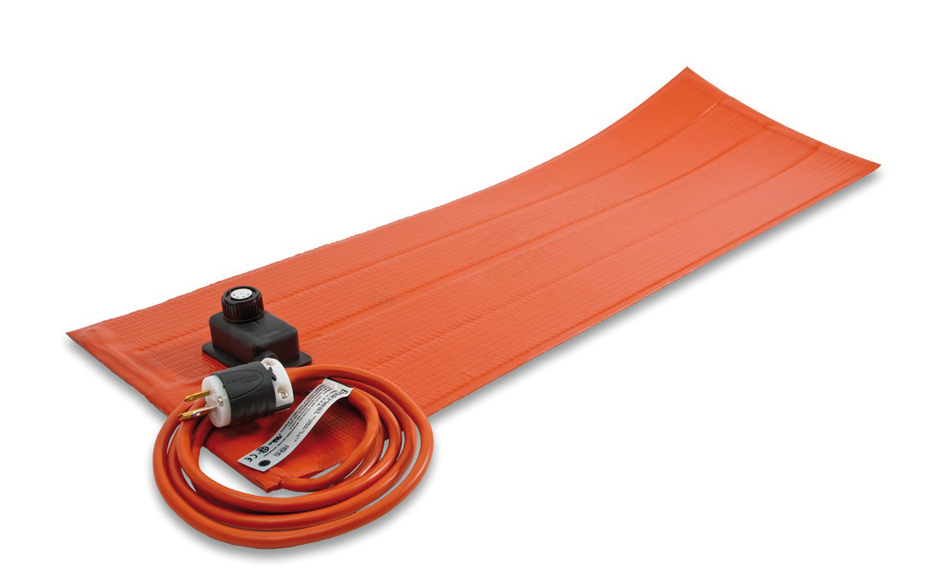

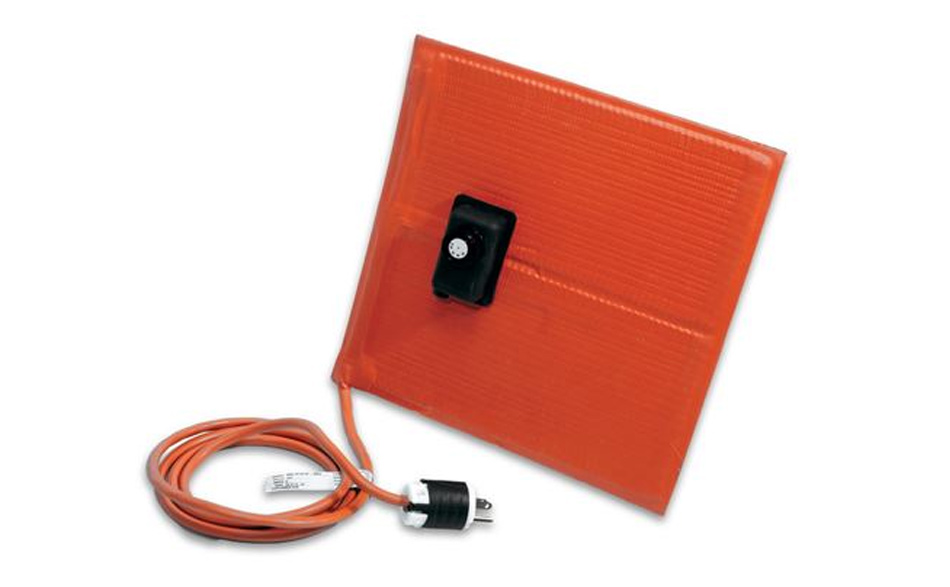

Silicone heating blankets, with built-in temperature control, are a true plug-and-play heater that's easy to install and ready for use out of the box. Our Silicone rubber heating blankets are an extremely versatile thin electric surface heater with a variety of applications across many industries.

Flexible Heating blanket are ideal for: • Tanks • Vessels • Hoppers • Silos • Conveyors • Vats

Features:

• Sizes: 6x12", 6x24", 6x36", 12x12", 12x24", 12x36", 18x18", 18x36", 24x24"
• Low profile heater design is ideal for heating surfaces like tanks, hoppers, conveyors, silos, etc.
• Silicone rubber provides exceptional durability and longevity.
• Moisture, chemical and radiation resistant silicone rubber.
• Available with industrial strength pressure sensitive adhesive (PSA) backing for easy installation (see ordering options).

Allow two to four weeks lead time on these orders.

Features

Technical Data

• Heating element is laminated between two layers of 20mil fiberglass reinforced silicone rubber. Patented grounded heating element for your safety meets NEC 427.23. Click on our Technical Data and Additional Equipment Tabs above for more information.

• - Power: 120V Single Phase
  - Sizes: 6x12", 6x24", 6x36", 12x12", 12x24", 12x36", 18x18", 18x36", 24x24"
  - Temp control range: 50°F to 425°F
  - With or Without Pressure Sensitive Adhesive
  - Wattage 180 to 1440
  - Standard power densities:
  - 2.5 W/in² (0.004 W/mm²)
  - Adjustable thermostat control range:
  - 50°F to 425°F (10°C to 218°C)
  - Minimum exposure temperature: -60°F(-51°C)
  - Maximum exposure temperature: 450°F (232°C)
  - Dielectric strength: Over 2000 volts
  - Silicone density: 21.7oz/yd² (736g/m²) per layer
  - Electrical power leads: 6ft (1.8m) 120V: Standard 3-prong NEMA 5-15 electrical plug
